400&430 Standing Seam Metal Roof Roll Forming Machine

400&430 Standing Seam Metal Roof Roll Forming Machine

Standing Seam Metal Roof Roll Forming Machine – an advanced solution that not only meets the latest industry standards but also sets new benchmarks in roofing technology. Carefully developed through in-depth market research and strategic positioning, this machine is a reflection of our commitment to leading innovation. With outstanding production efficiency and a strong technological foundation, it showcases our dedication to continuous improvement and excellence in responding to the ever-changing demands of the market. Empower your manufacturing process with a machine that represents cutting-edge technology and exceptional performance

PRODUCTS

CONTACT US

Address：Fuzhuang industry,Nanpi city,Cangzhou, Hbei province,China
Phone: +86 15233770276
Whatsapp: +8615233770276
Email: cherry@hechuangmachine.com
Working Day/Hours :Mon - Sun / 9:00 AM - 8:00 PM

Description

Standing Seam Forming Machine Specification

Material Thickness: 0.3mm – 0.8mm
Roller Stations: 12-16 (depending on the machine configuration)
Speed: 10-25m/mins
Voltage: 380V, 50Hz, 3 Phase (customizable for different regions)
Power: 5.5 kW – 7.5 kW (depending on the machine model)
Weight: Approximately 3,500kg – 4,500kg
Dimensions: 8000mm (L) x 1200mm (W) x 1500mm (H)
Panel Width: 350mm
Control System: PLC control with touch screen interface
Cutting System: Hydraulic or mechanical cutting (optional)
Materials Supported: Galvanized steel, aluminum, stainless steel, coated steel
Production Capacity: Up to 2000 meters per day (depending on panel size and thickness)

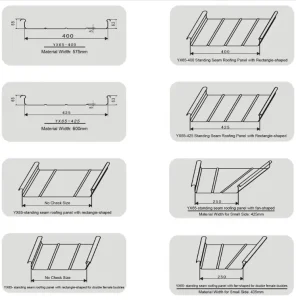

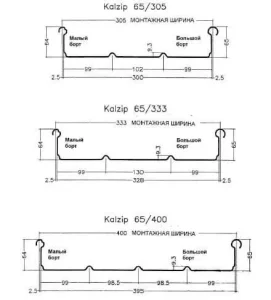

Other shape of the standing seam roof
