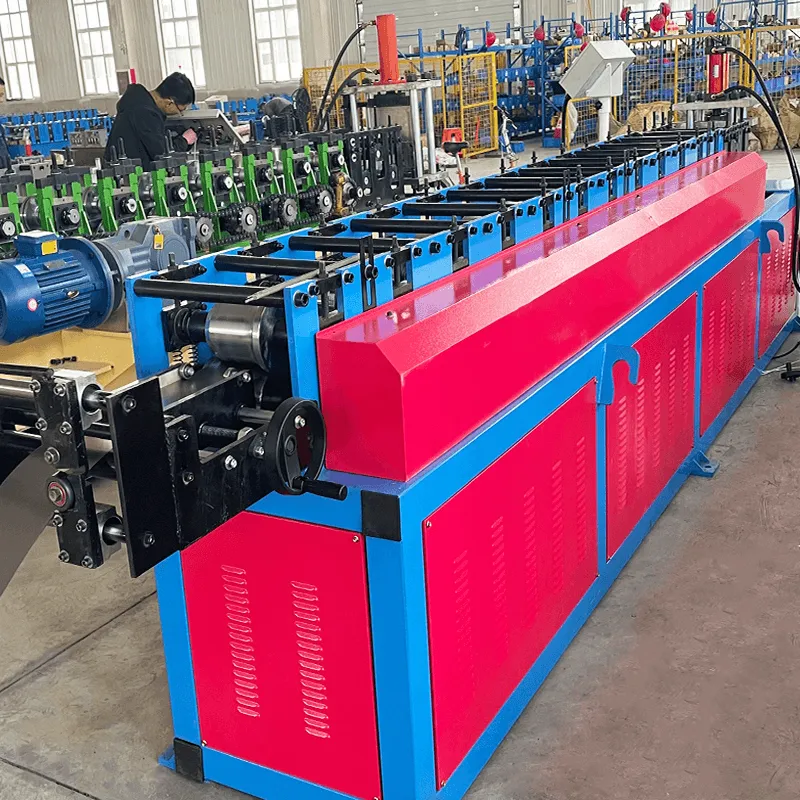

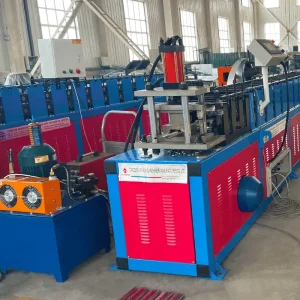

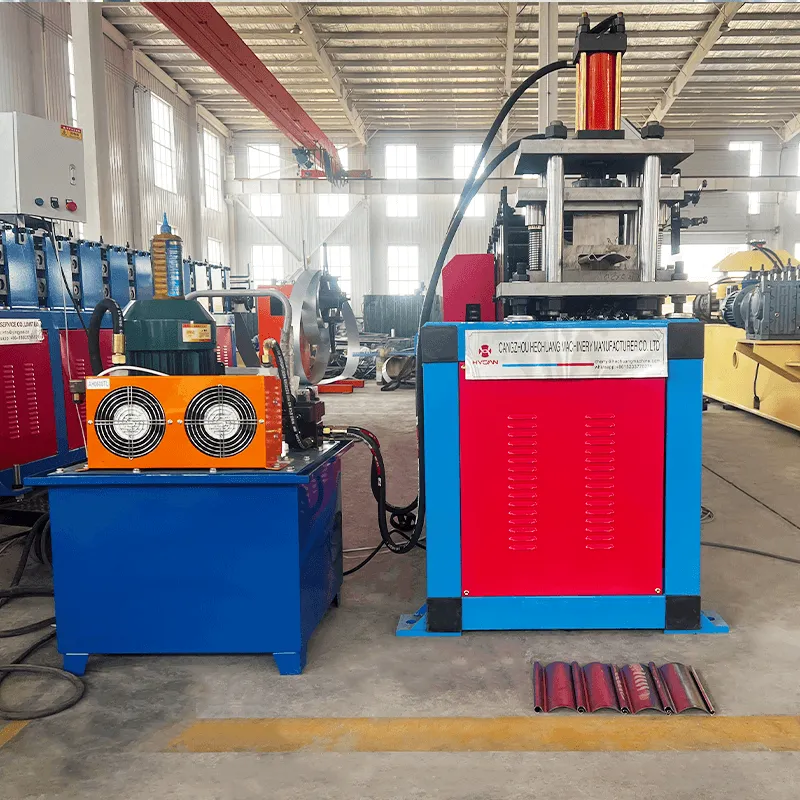

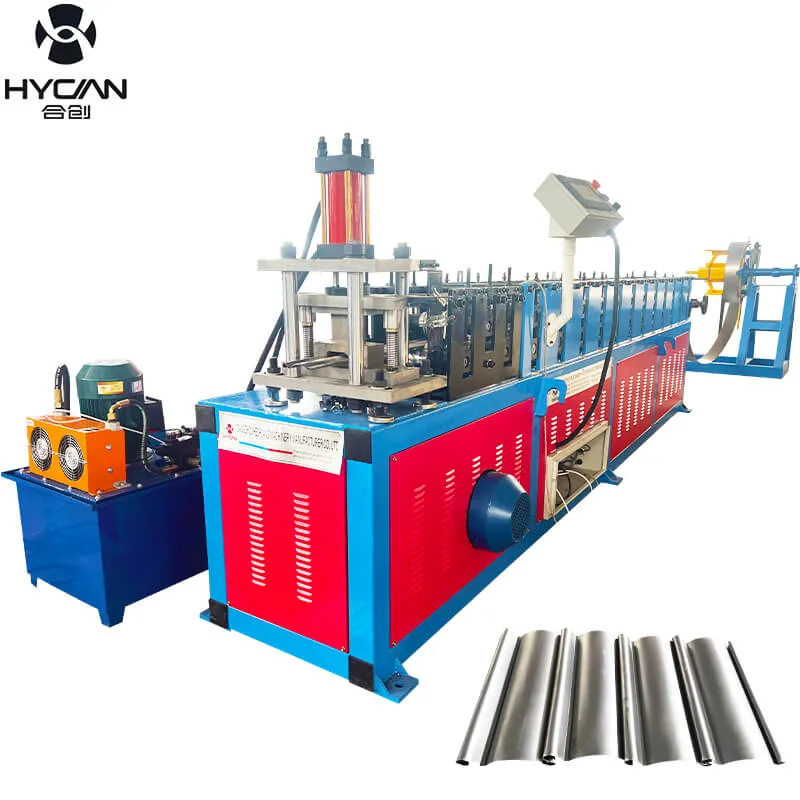

Shutter door making machine produce line
Noted: you can send the the shutter door shape, and thickness you need, so that we can customize according to your requirements, which is very important for us!!!
| No. | Item | Data | ||
| 1 | Raw Material | Color steel sheet or or galvanized steel sheet | ||
| 2 | Material Thickness | 0.3-0.8 mm or customized | ||
| 3 | Forming roller material | High grade 45# steel,surface chromed thickness 0.05mm | ||
| 4 | Shaft material | 45# STEEL with quenched and tempering | ||
| 5 | Shaft diameter | 50 mm,solid shaft | ||
| 6 | Machine body | square tube | ||
| 7 | Main motor power | 5.5kw /7.5kw(according to type) | ||
| 8 | Hydraulic power | 4kw (according to type) | ||
| 9 | Control system | PLC control (DELTA) | ||
| 10 | Bearing | Chinese famous brand Harbin | ||
| 11 | Transmission | By chain,with chain cover | ||
| 12 | Voltage | 220V/380V,50Hz,3 phase | ||
Feature :
 |
 |
 |
Feature : |

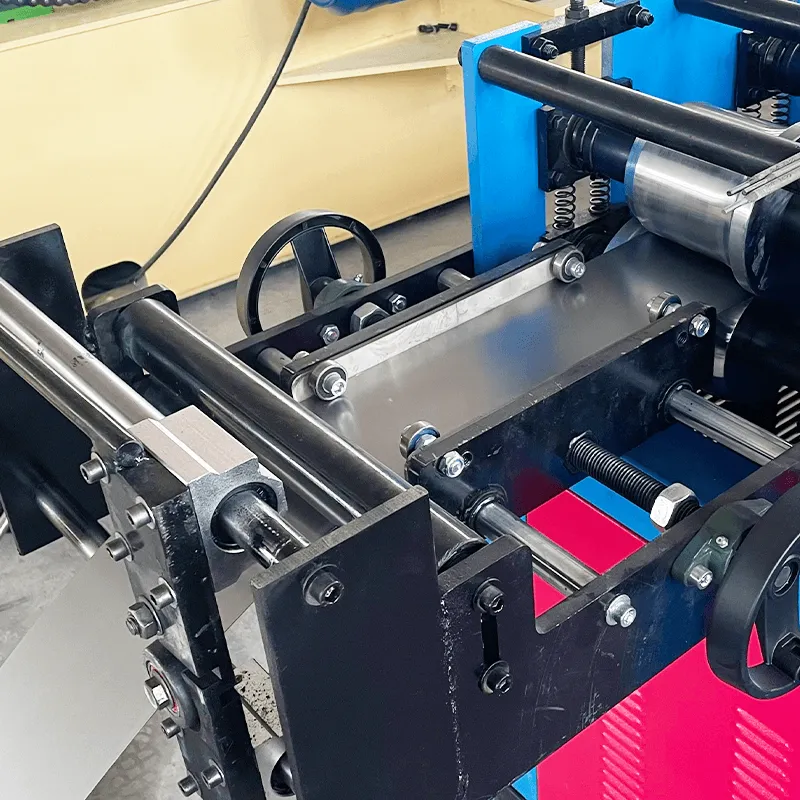

Feed Table |

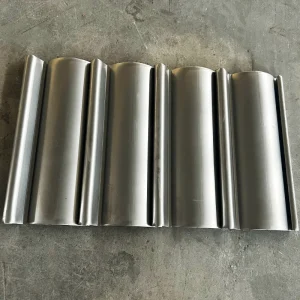

The shutter door shape |
2. Quality Assurance
Prototype testing prior to bulk production
Rigorous final quality checks before dispatch
3.Our Product Range
We specialize in manufacturing:
– Roof & Wall Roll Forming Systems
– Floor Deck Fabrication Machinery
– Light Steel Keel Production Equipment
– CZ Purlin Roll Forming Units
– Precision Leveling & Slitting Machines
4.Competitive Advantages
① Full-spectrum manufacturer of roofing machinery and related equipment.
② Decade-long industry expertise with cutting-edge technological solutions.
③ Dedicated R&D division and 24/7 customer support team.
5. Service Capabilities
– Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
– Transaction Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
– Payment Options: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
– Languages: English, Chinese, Spanish, Japanese, German, French, Russian
