Noted: There are two types of tile making machines: standard type and customized type. If you need to customize, please send us the design drawing,feeding width, thickness and raw materials, so that we can customize according to your requirements, which is very important for us!!!
| No. | Item | Data | ||
| 1 | Raw Material | Color steel sheet or or galvanized steel sheet | ||
| 2 | Material Thickness | 0.3-0.8 mm or customized | ||
| 3 | Forming roller material | High grade 45# steel,surface chromed thickness 0.05mm | ||
| 4 | Shaft material | 45# STEEL with quenched and tempering | ||
| 5 | Shaft diameter | 70mm,solid shaft | ||
| 6 | Machine body | 350H steel welded | ||
| 7 | Main motor power | 5.5kw /7.5kw(according to type) | ||
| 8 | Hydraulic power | 4kw (according to type) | ||
| 9 | Control system | PLC control (DELTA) | ||
| 10 | Bearing | Chinese famous brand Harbin | ||
| 11 | Transmission | By chain,with chain cover | ||
| 12 | Voltage | 220V/380V,50Hz,3 phase | ||
Feature :
 |
 |
 |
Feature : |
Feed Table |
Hydraulic station |
 |
Decoiler of Metal Steel Roofing Sheet Making Machine
Roof sheet make machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame. This loading frame decoiler also can use in other type machine, customer can buy it alone.
|
|

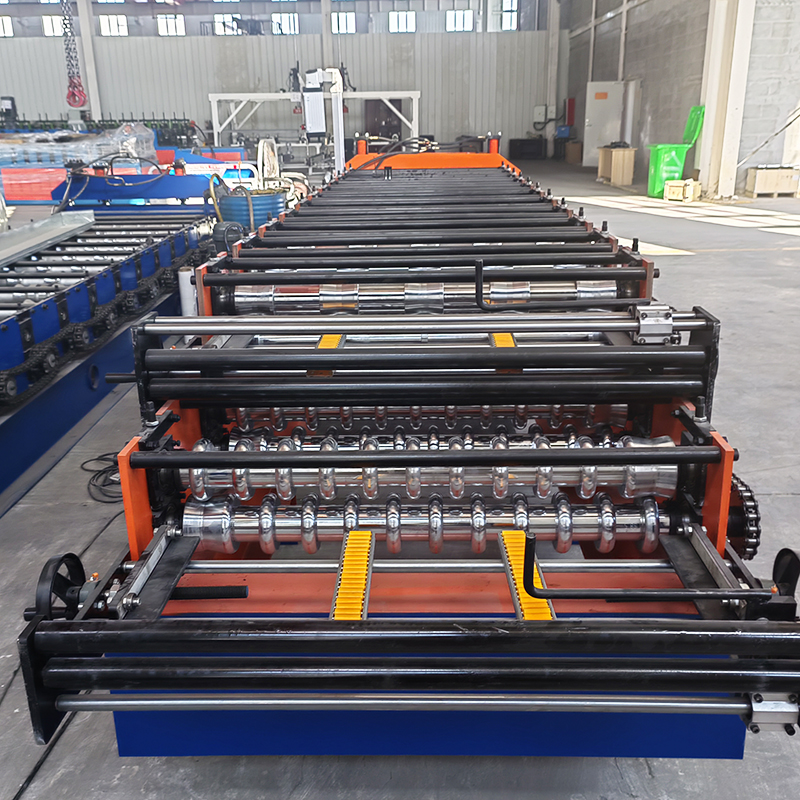

Machine frame of Metal Steel Roofing Sheet Making Machine
Roof sheet make machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
|
 |
 |

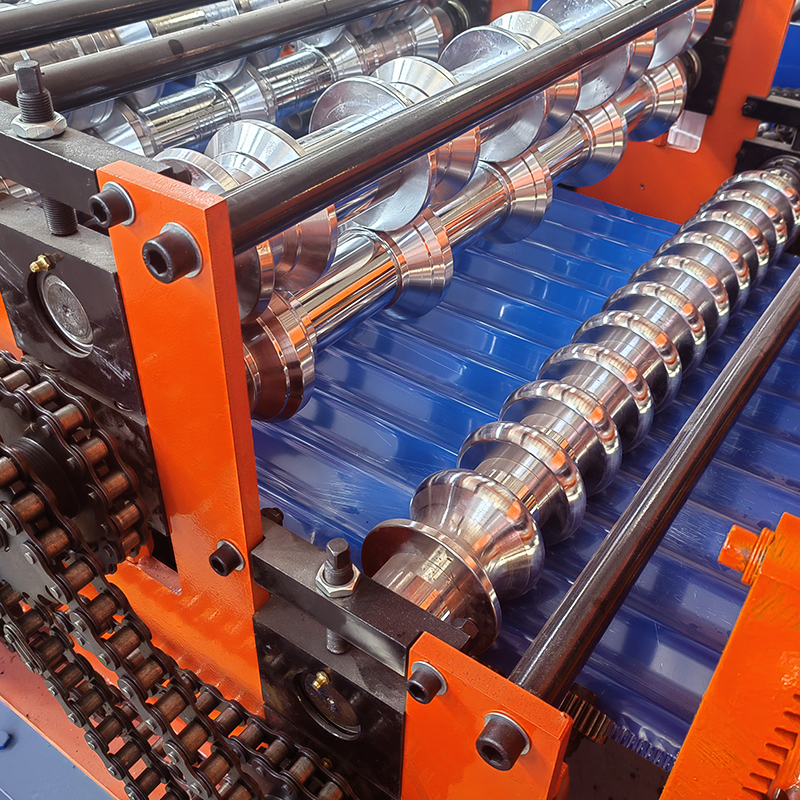

Forming Roller of Metal Steel Roofing Sheet Making Machine
Roof sheet make machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers Roller chrome coated thickness: 0.05 mm Roller material: Forging Steel 45# heat treatment.
|
|
Control Part of Metal Steel Roofing Sheet Making Machine
The control components of the roof slab making machine have different types. The standard types are all button controlled, and different functions are realized by pressing keys. It adopts independent control cabinet, which can move in different places without affecting the operation.
|
 |
1. About Us
We are a manufacturing enterprise based in Cangzhou, Hebei Province, China, established in 2013. Our primary export markets include South America (30%), Oceania (20%), Africa (20%), North America (10%), the Middle East (10%), and Southeast Asia (10%). Our team comprises 11-50 professionals dedicated to delivering excellence.
2. Quality Assurance
Prototype testing prior to bulk production
Rigorous final quality checks before dispatch
3.Our Product Range
We specialize in manufacturing:
– Roof & Wall Roll Forming Systems
– Floor Deck Fabrication Machinery
– Light Steel Keel Production Equipment
– CZ Purlin Roll Forming Units
– Precision Leveling & Slitting Machines
4.Competitive Advantages
① Full-spectrum manufacturer of roofing machinery and related equipment.
② Decade-long industry expertise with cutting-edge technological solutions.
③ Dedicated R&D division and 24/7 customer support team.
5. Service Capabilities
– Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
– Transaction Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
– Payment Options: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
– Languages: English, Chinese, Spanish, Japanese, German, French, Russian
