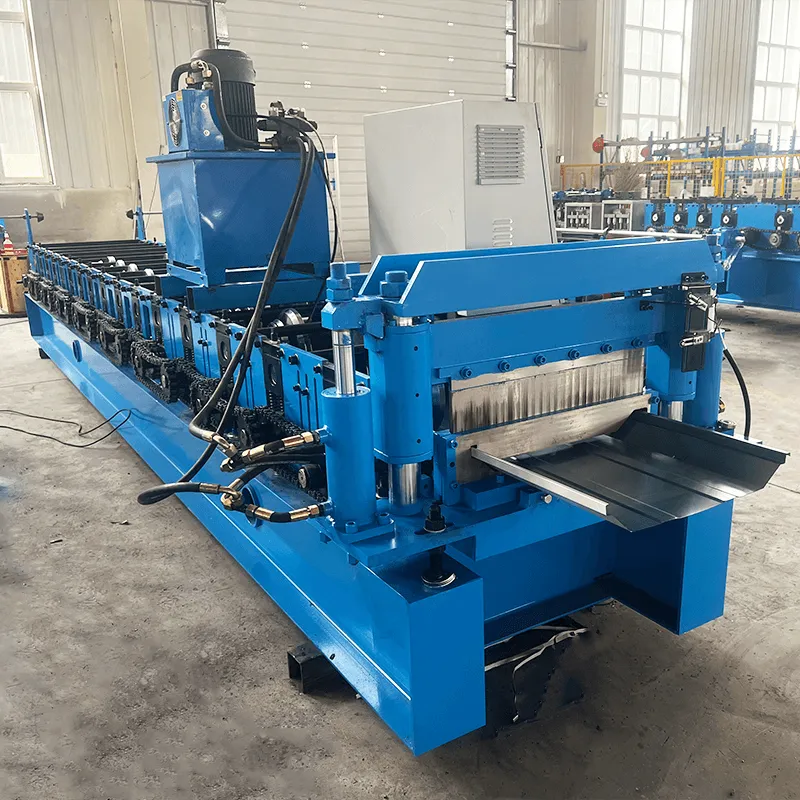

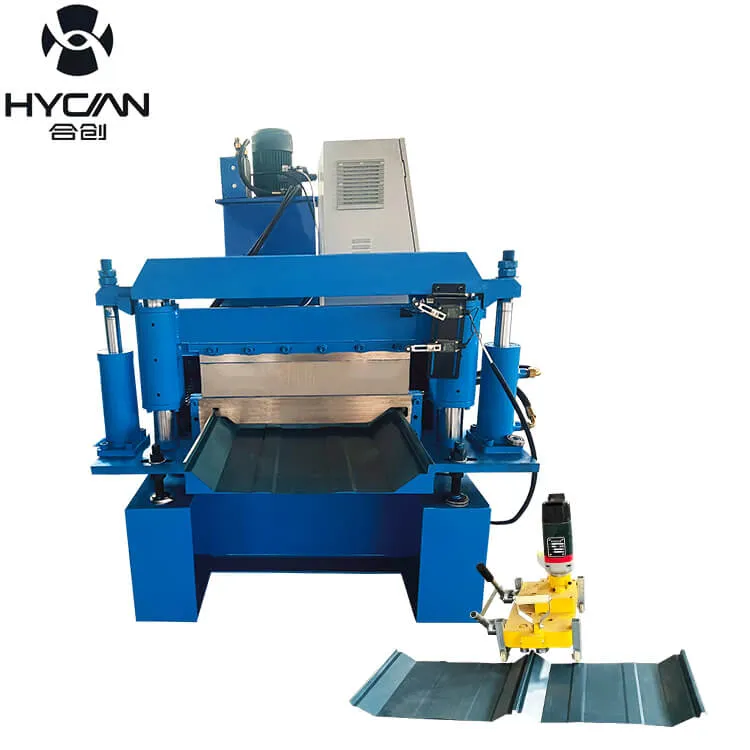

Standing Seam Machine Specification
-
Material Thickness: 0.3mm – 0.8mm
-

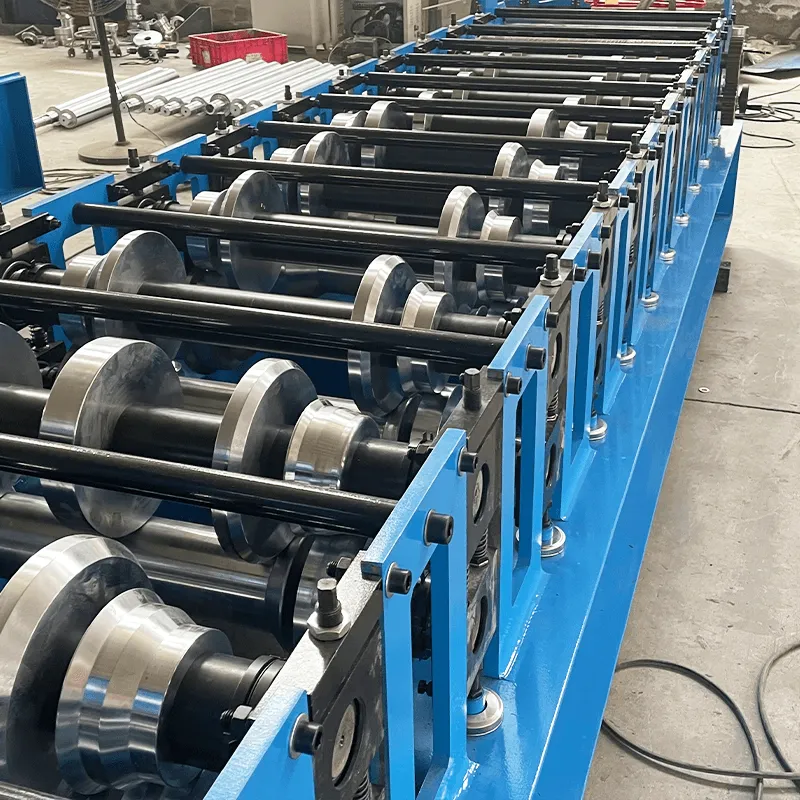

Roller Stations: 12-16 (depending on the machine configuration)
-
Speed: 10-25m/mins
-
Voltage: 380V, 50Hz, 3 Phase (customizable for different regions)
-
Power: 5.5 kW – 7.5 kW (depending on the machine model)
-
Weight: Approximately 3,500kg – 4,500kg
-
Dimensions: 8000mm (L) x 1200mm (W) x 1500mm (H)
-

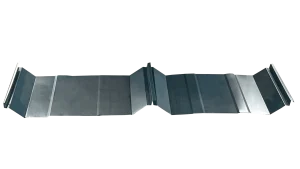

Panel Width: 350mm
-
Control System: PLC control with touch screen interface
-

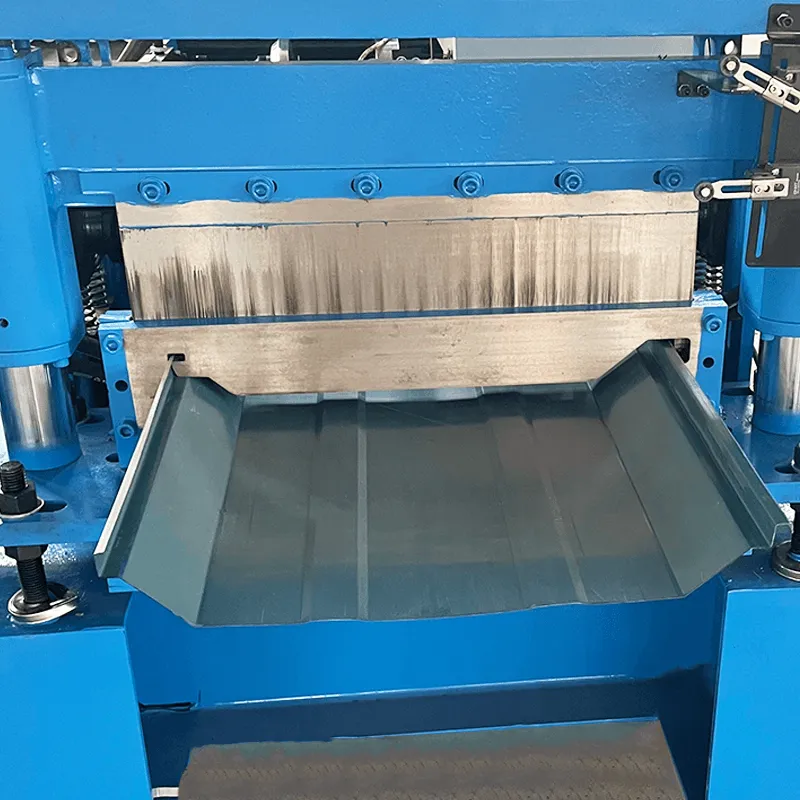

Cutting System: Hydraulic or mechanical cutting (optional)
-
Materials Supported: Galvanized steel, aluminum, stainless steel, coated steel
-
Production Capacity: Up to 2000 meters per day (depending on panel size and thickness)
